Frequency

Mounting

Application

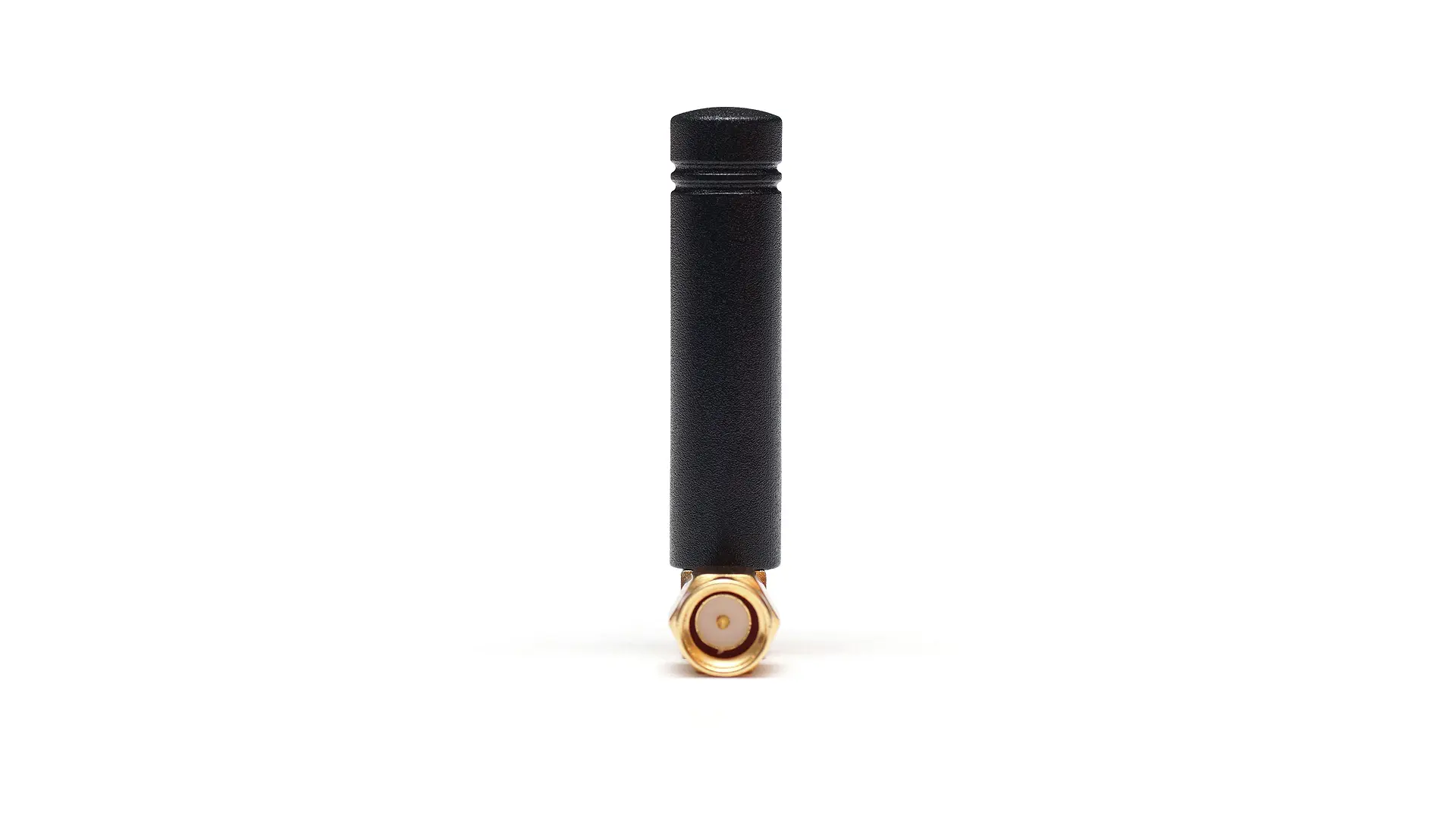

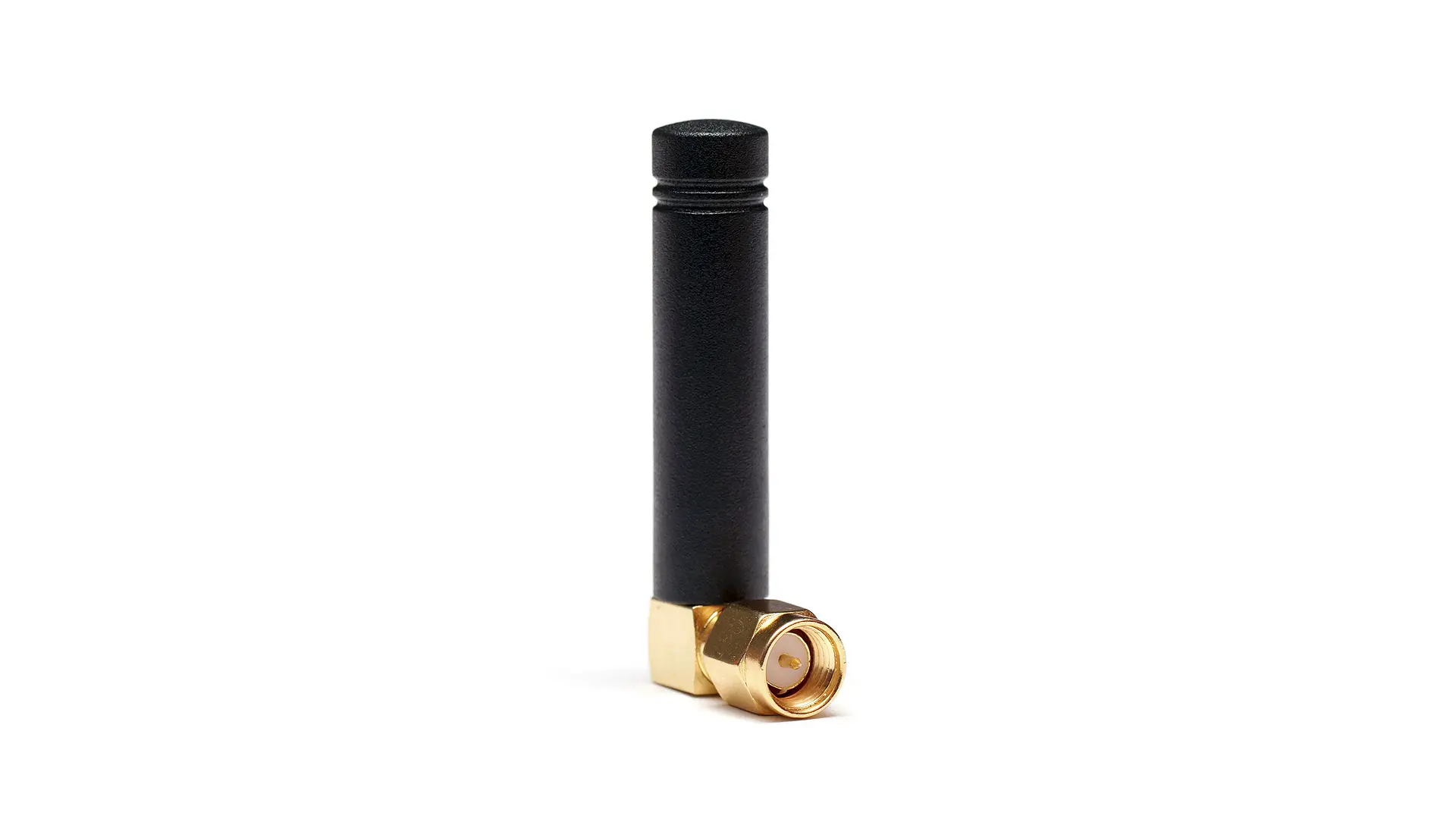

2J0B15-915-C884G

2J0B15-915-C884G

Download Data Sheet

Dimensions

Dimensions (mm) 44 x 19.1 × 9
Operating temperature -40 °C to +85 °C

Specification

Standards ZigBee, ISM, SIGFOX, LoRa
Frequency 902-928
VSWR ~1.6:1
Efficiency (%) ~60.4
Peak Gain (dBi) ~1.1
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
