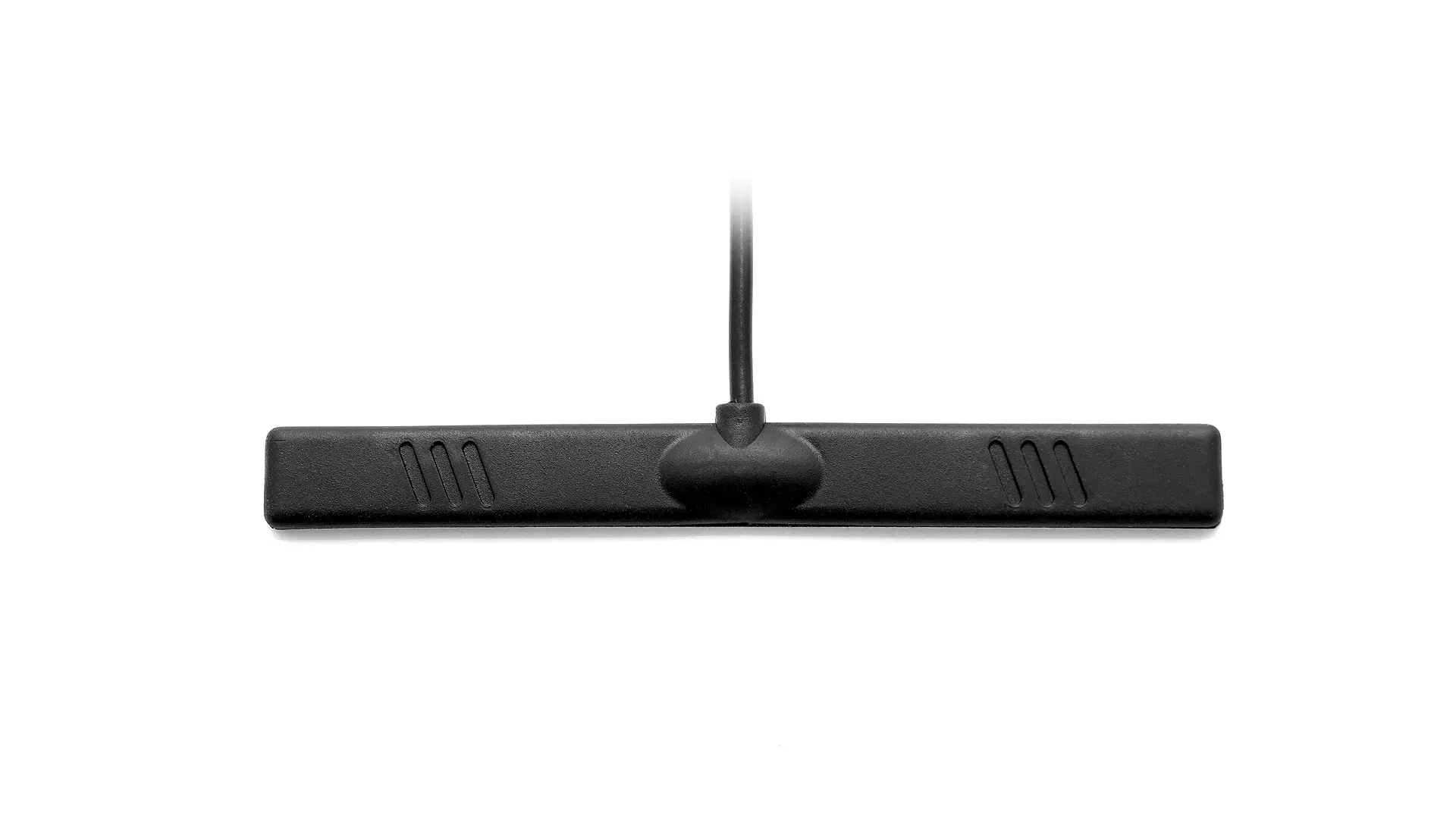

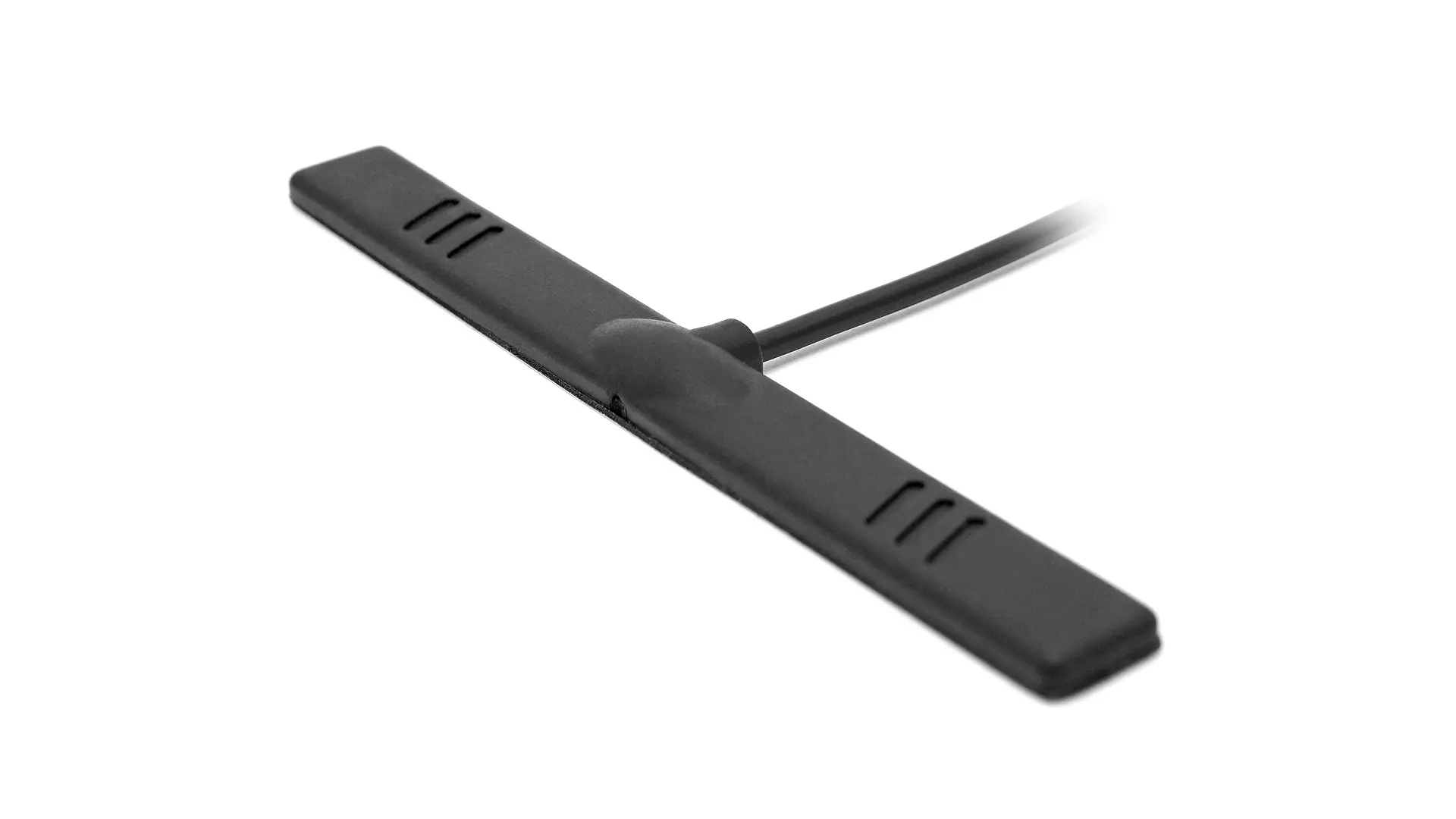

2J5224P

2J5224P

Download Data Sheet

Dimensions

Dimensions (mm) 117.4 x 12.5 x 6.5
Operating temperature -40 °C to +85 °C
Note Optional Antenna Detection Resistor

Specification

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~2.0:1, ~1.5:1, ~1,8:1
Efficiency (%) ~53, ~52, ~41
Peak Gain (dBi) ~2.0, ~4.1, ~4.1
Impendance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
