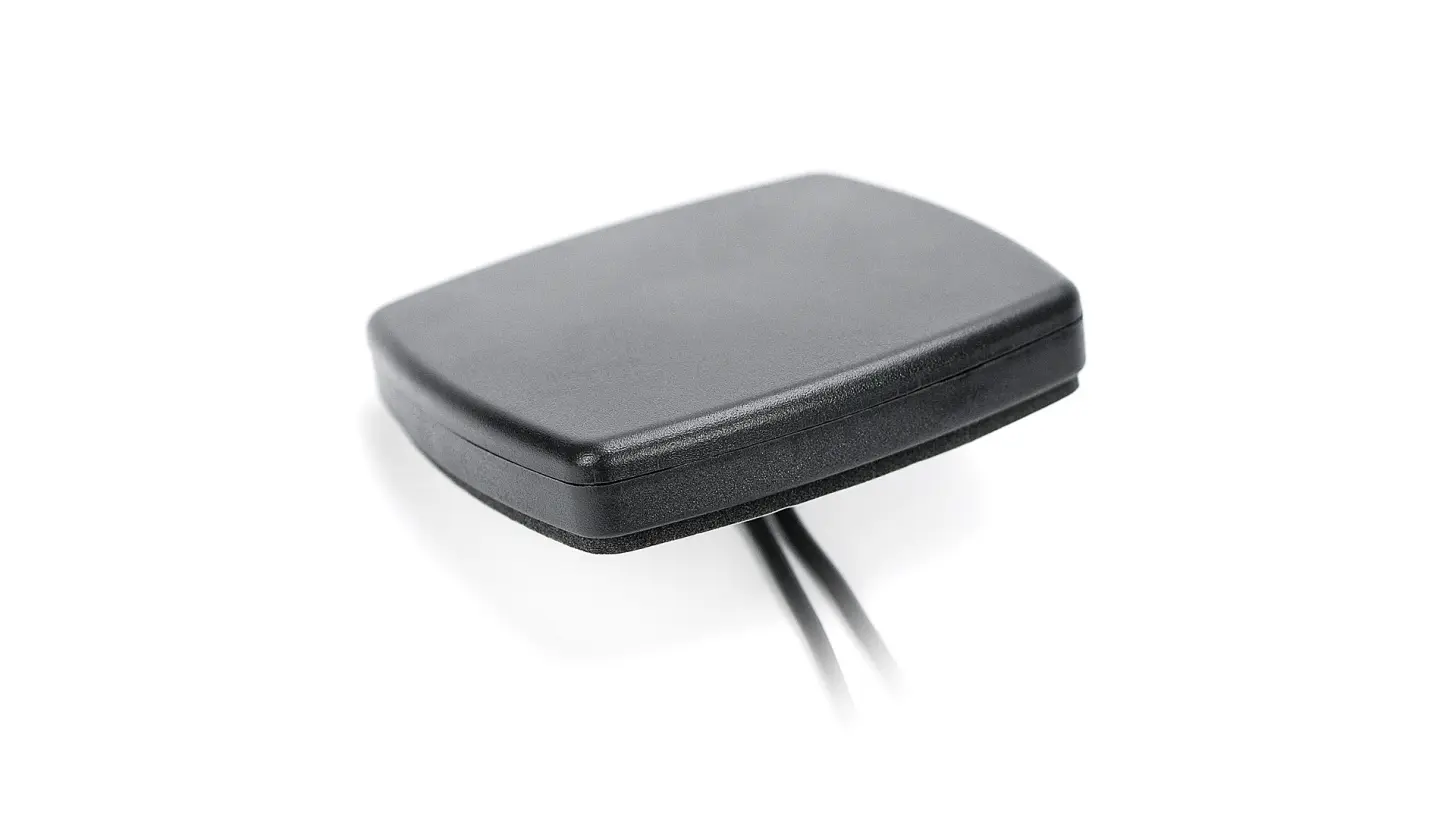

2J6041BGF

2J6041BGF

Download Data Sheet

Frequency

3G (UMTS 2.1 GHz)

4G/LTE (699-960/1710-2690 MHz)

GALILEO E1 (1575.42 MHz)

GLONASS (1592 - 1610 MHz)

GPS (1575.42 MHz)

GSM (900 MHz)

LTE (2.6 GHz)

Dimensions

Dimensions (mm) 80 x 74 x 14.7
Operating temperature -40 °C to +85 °C
Note 19mm Thread is Default Option. See Drawing in Datasheet for other Thread Options available.

Specification

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~2.6:1, ~1.8:1, ~2.9:1
Efficiency (%) ~40.7, ~47.5, ~18.3
Peak Gain (dBi) ~1.8, ~5.0, ~-0,1
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
