2JF0102P

2JF0102P

Download Data Sheet

Frequency

4G/LTE (699-960/1710-2690 MHz)

WIFI (5.0 GHz)

WIFI / BLUETOOTH (2.4 GHz)

Dimensions

Dimensions (mm) 39.6x 8.4 x 0.1
Operating temperature -40 °C to +85 °C

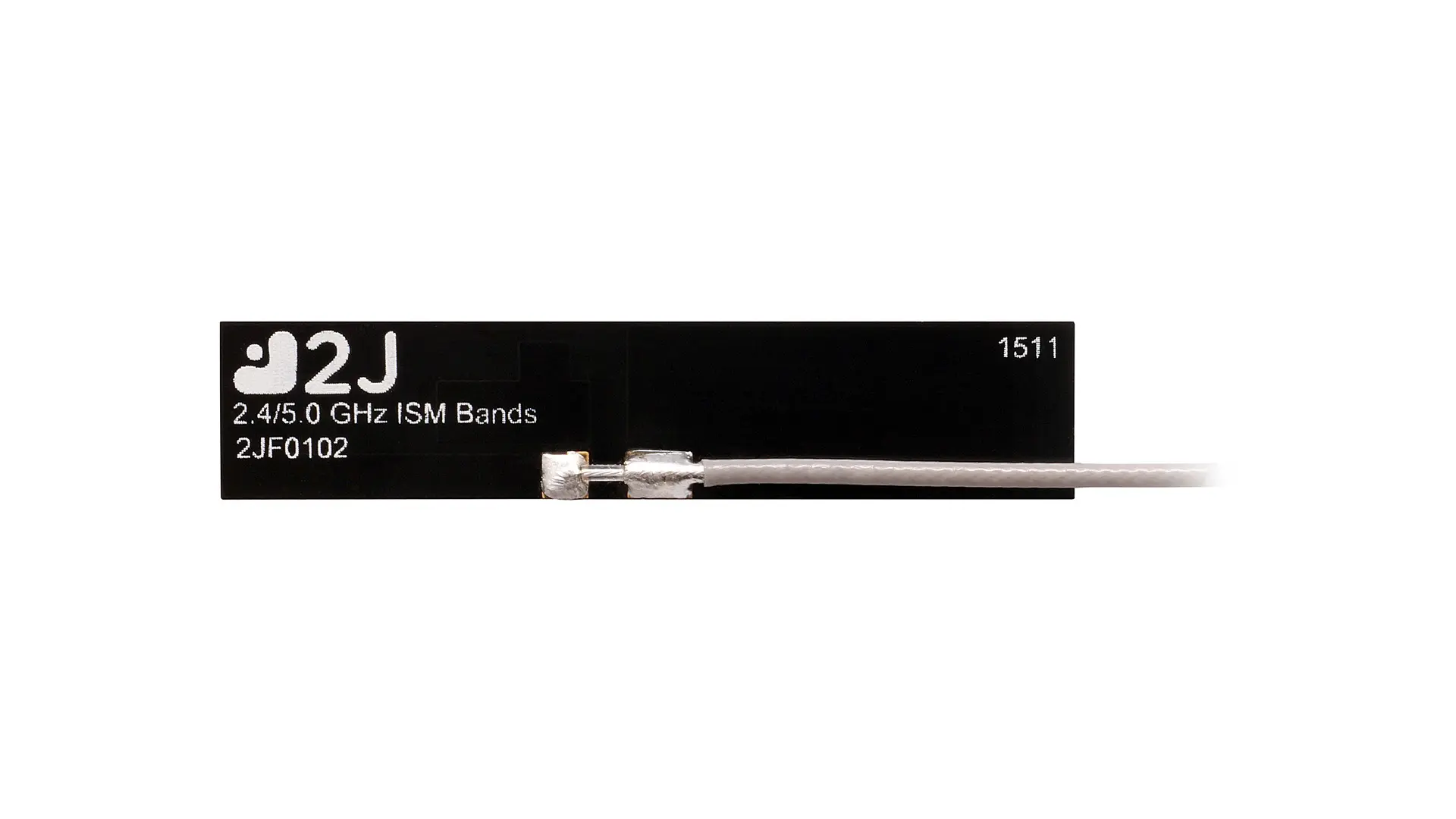

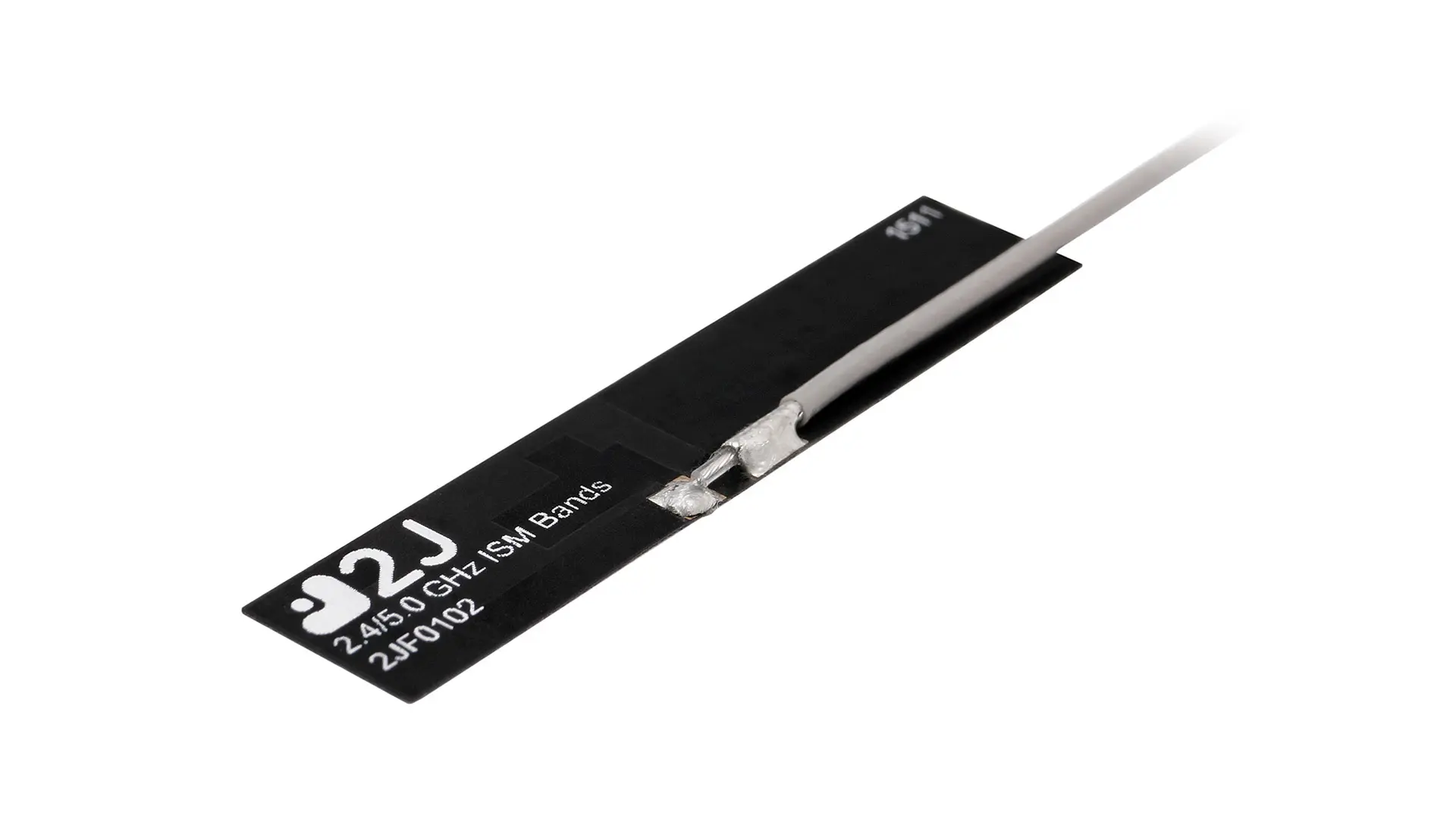

Note Flexi Embedded Antenna

Specification

Standards WiFi, BT, ZigBee, ISM
Frequency 2410-2490, 4920-5925
VSWR ~1.2:1, ~1.4:1
Efficiency (%) ~76, ~82
Peak Gain (dBi) ~2.2, ~3.8
Impendance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
