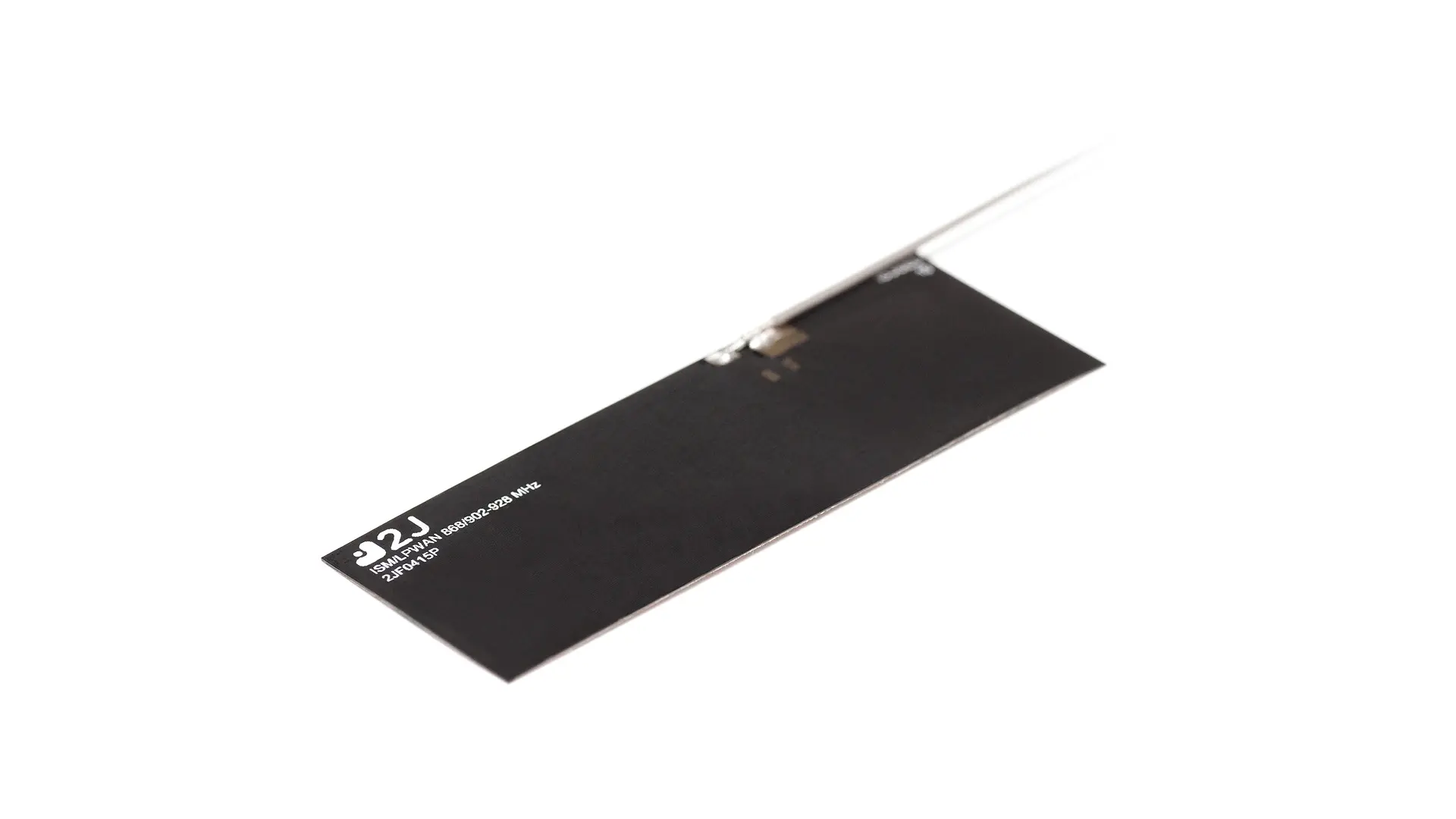

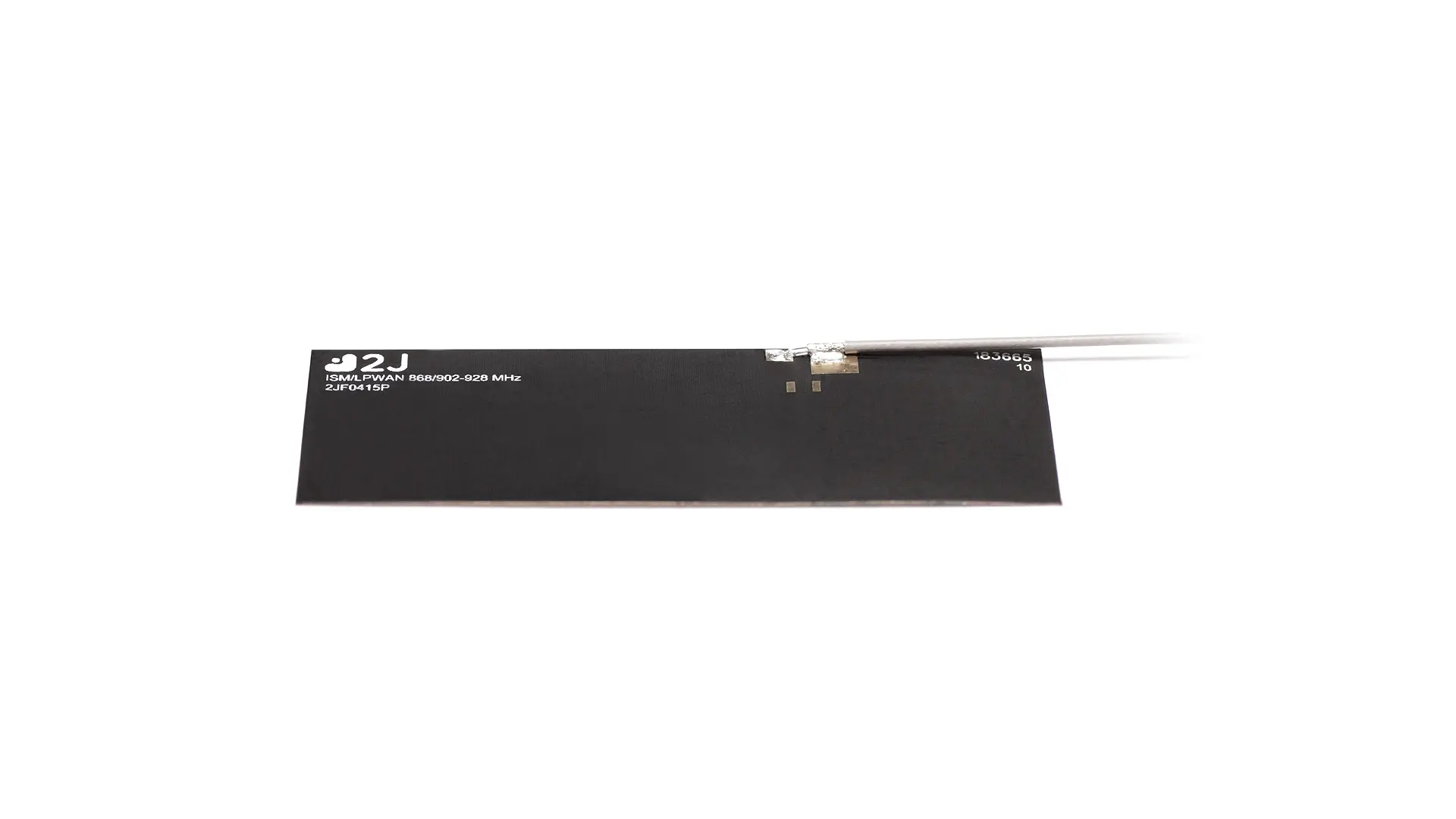

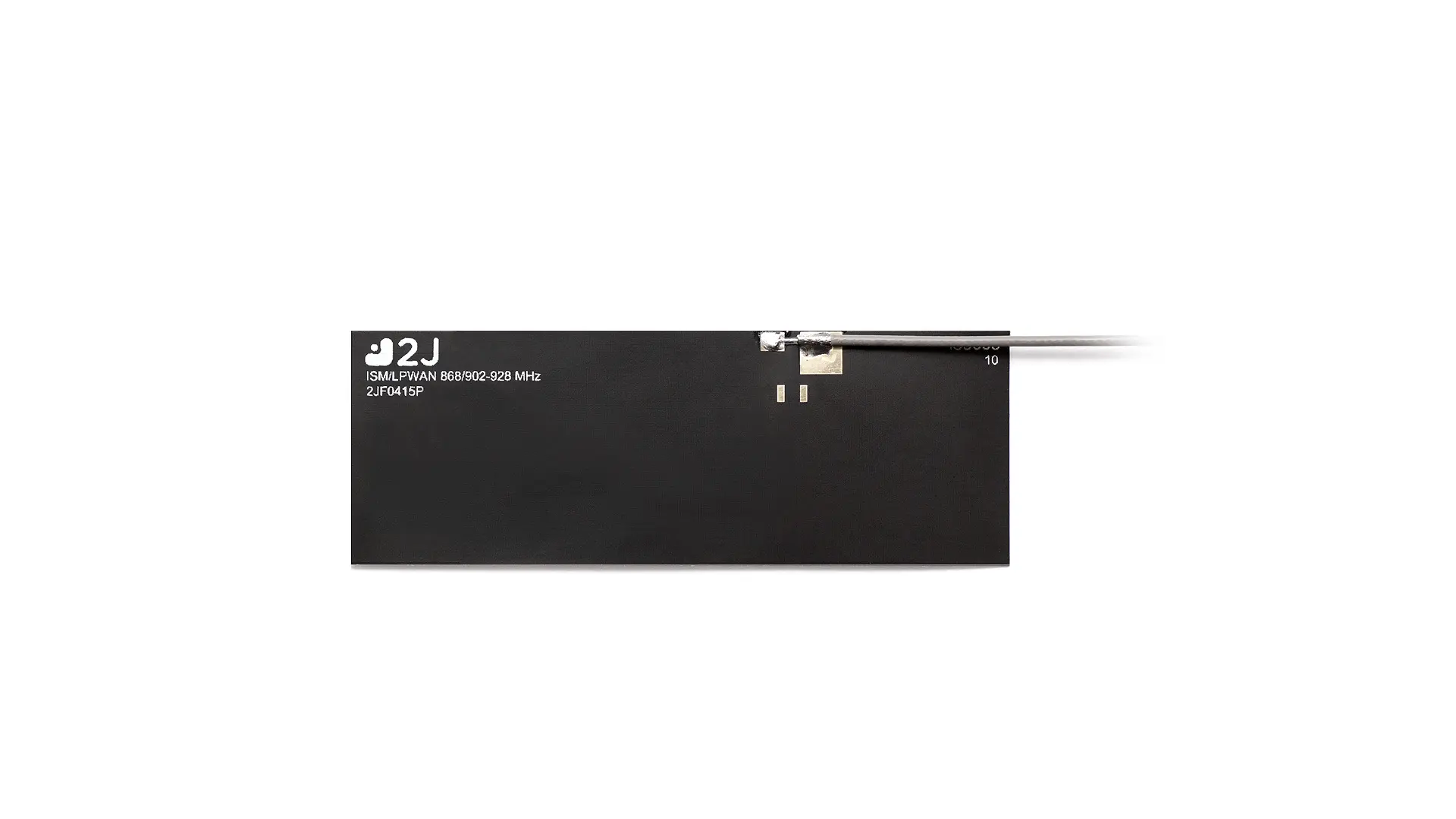

2JF0415P

2JF0415P

Download Data Sheet

Dimensions

Dimensions (mm) 25.0 x 70.0 x 0.2
Operating temperature -40 °C to +85 °C

Specification

Standards ZigBee, ISM, SIGFOX, LoRa
Frequency 863-870, 902-928
VSWR ~2.3:1, ~1.2:1
Efficiency (%) ~58, ~77
Peak Gain (dBi) ~2.7, ~3.6
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
