Frequency

Mounting

Application

2JF0624P

2JF0624P

Download Data Sheet

Frequency

3G (UMTS 2.1 GHz)

4G/LTE (699-960/1710-2690 MHz)

GSM (900 MHz)

LTE (2.6 GHz)

Dimensions

Dimensions (mm) 110.4 x 20.8 x 0.2
Operating temperature -40 °C to +85 °C

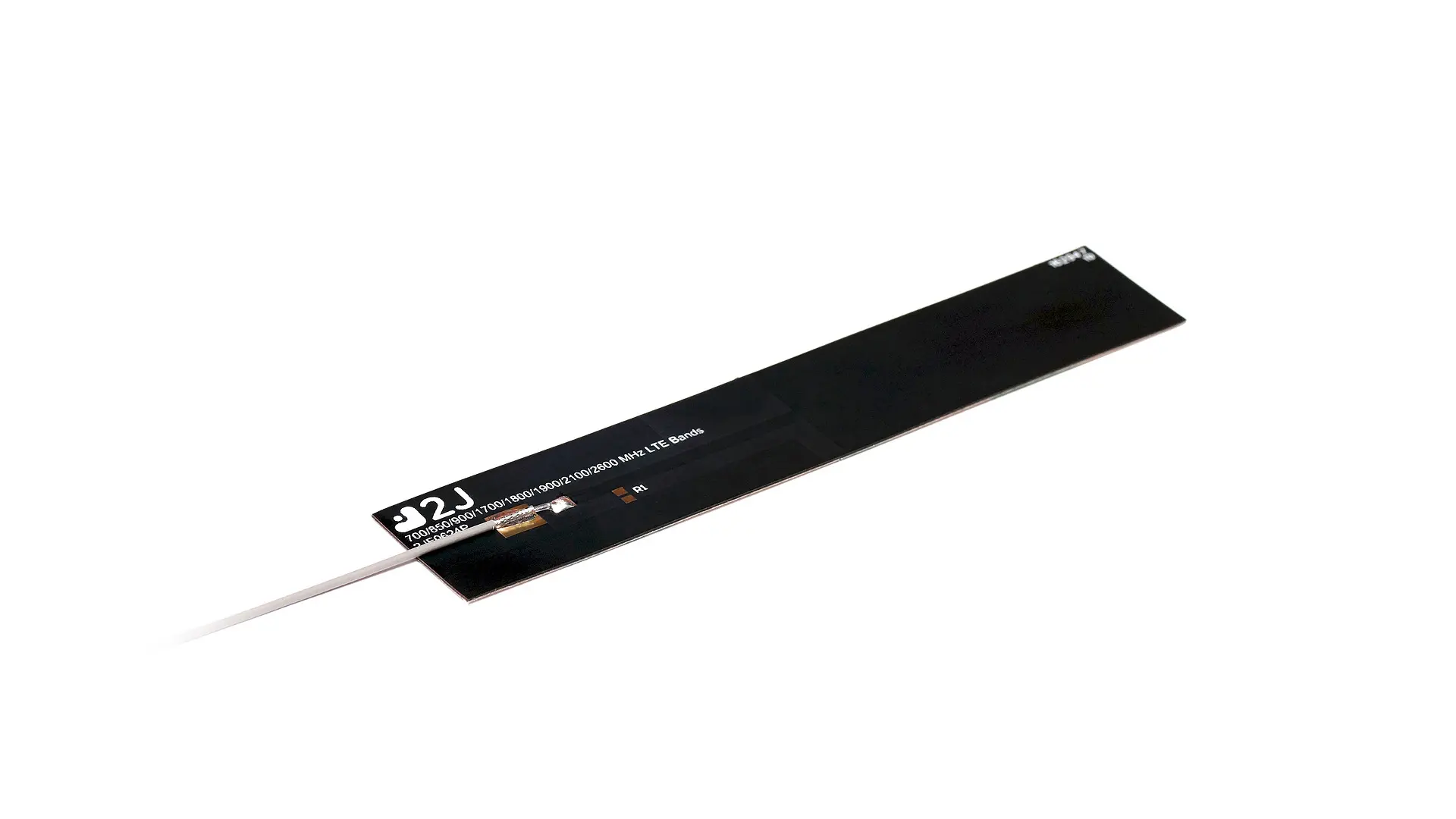

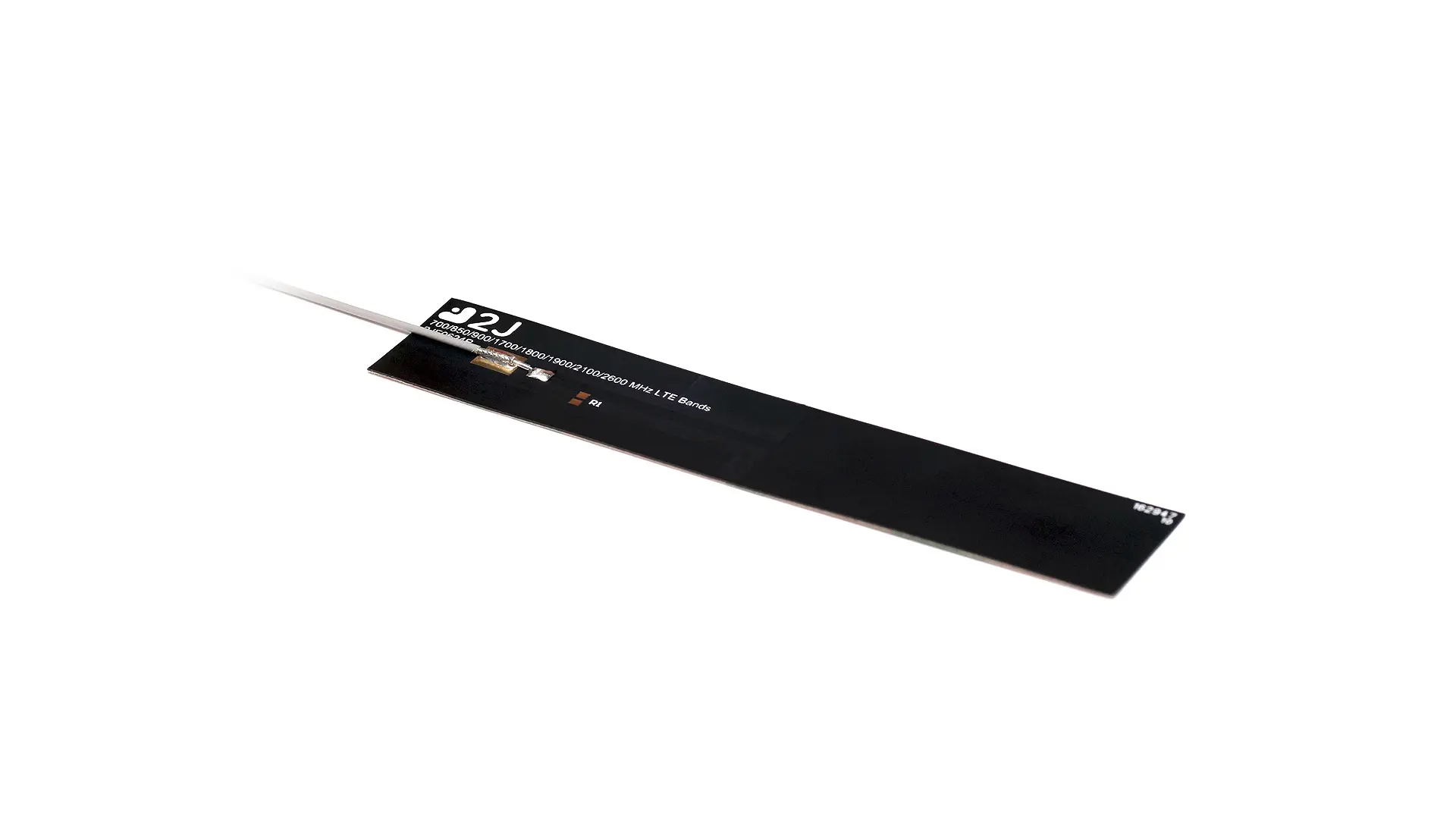

Note Flexi Embedded Antenna

Specification

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~1.6:1, ~2.0:1, ~2.8:1
Efficiency (%) ~59, ~68, ~59
Peak Gain (dBi) ~1.0, ~3.4, ~2.5
50
Polarisation Linear
Max. Input Power (W) 25
