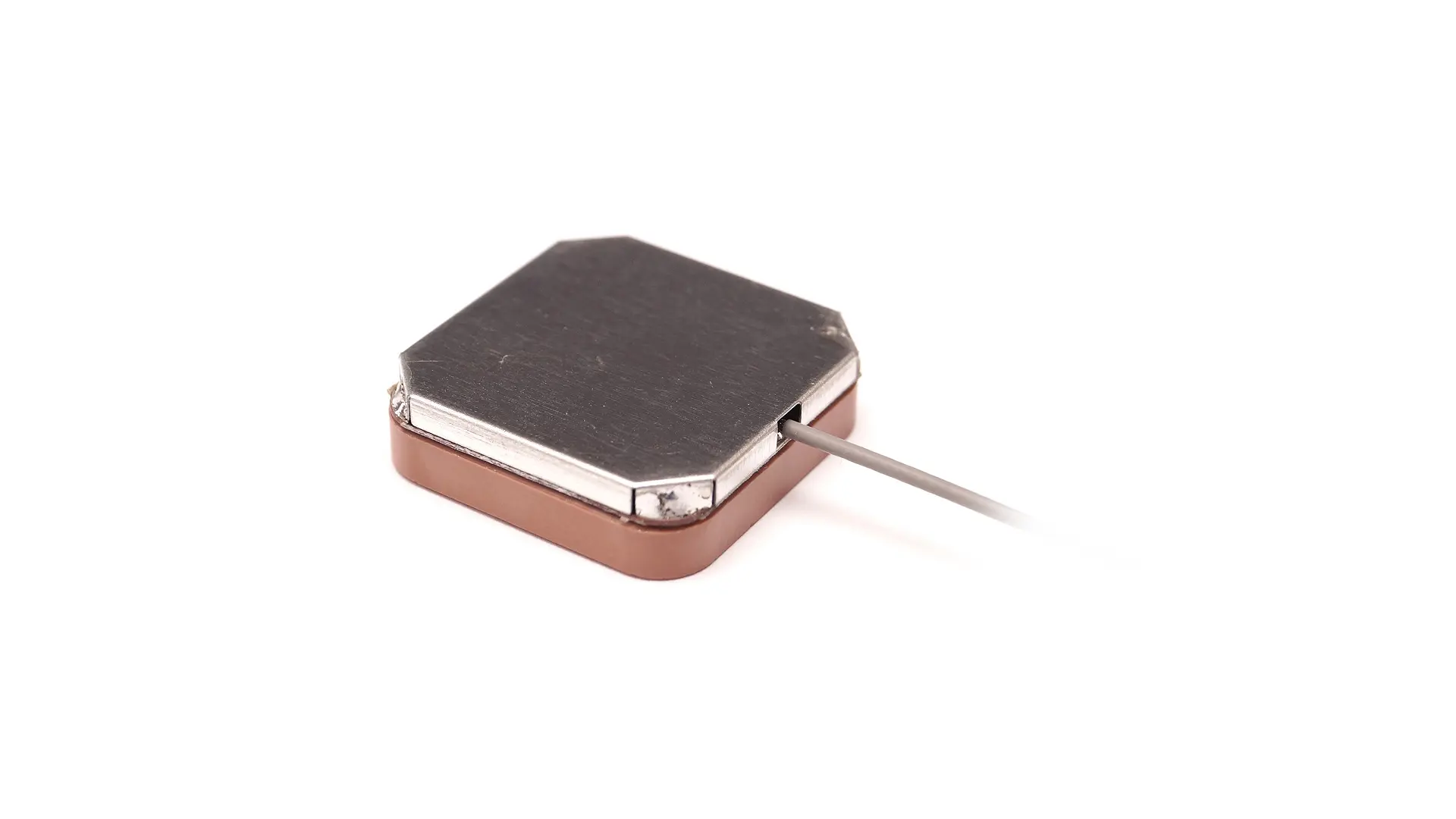

2JM0701GF

2JM0701GF

Download Data Sheet

Dimensions

Dimensions (mm) 25 x 25 x 7.6
Operating temperature -40 °C to +85 °C

Specification

Standards GPS/GLONASS/QZSS/Galileo
Frequency 1575.42, 1598-1606
Passive Gain (dBi) ~3.6
Impendance (Ohm) 50
Voltage Range (V) 1.5 – 3.6
Active Gain (dB) 28 @ 2.7 V
Noise Figure (dB) 1.8 @ 2.7 V
Current Consumption (mA) 9 @ 2.7 V
Power Consumption (mW) 24.3 @ 2.7 V
Saw Filter Type Pre-Filter
Out of Band Rejection (dB) 43
ESD Protection (kV) 6
