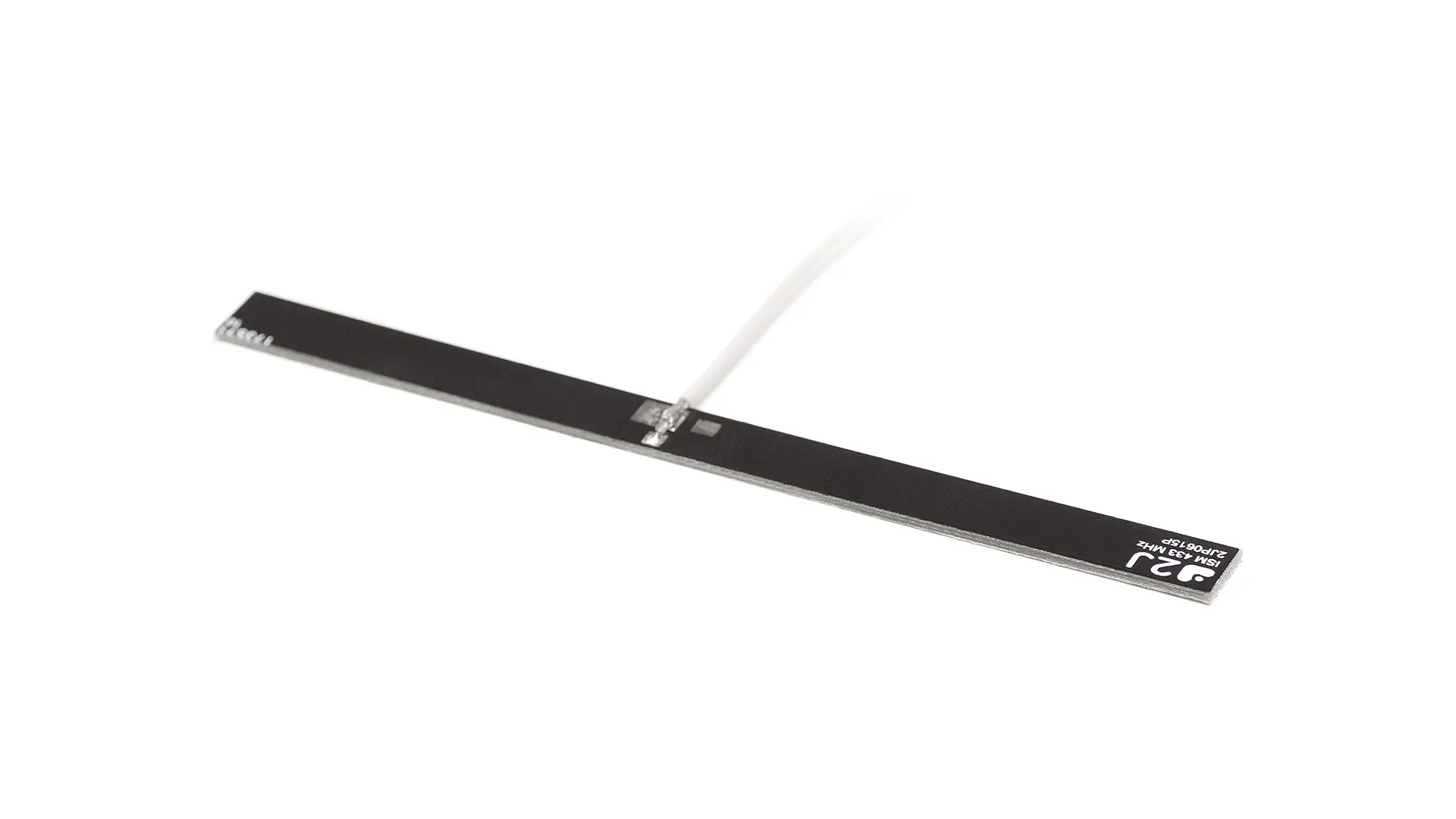

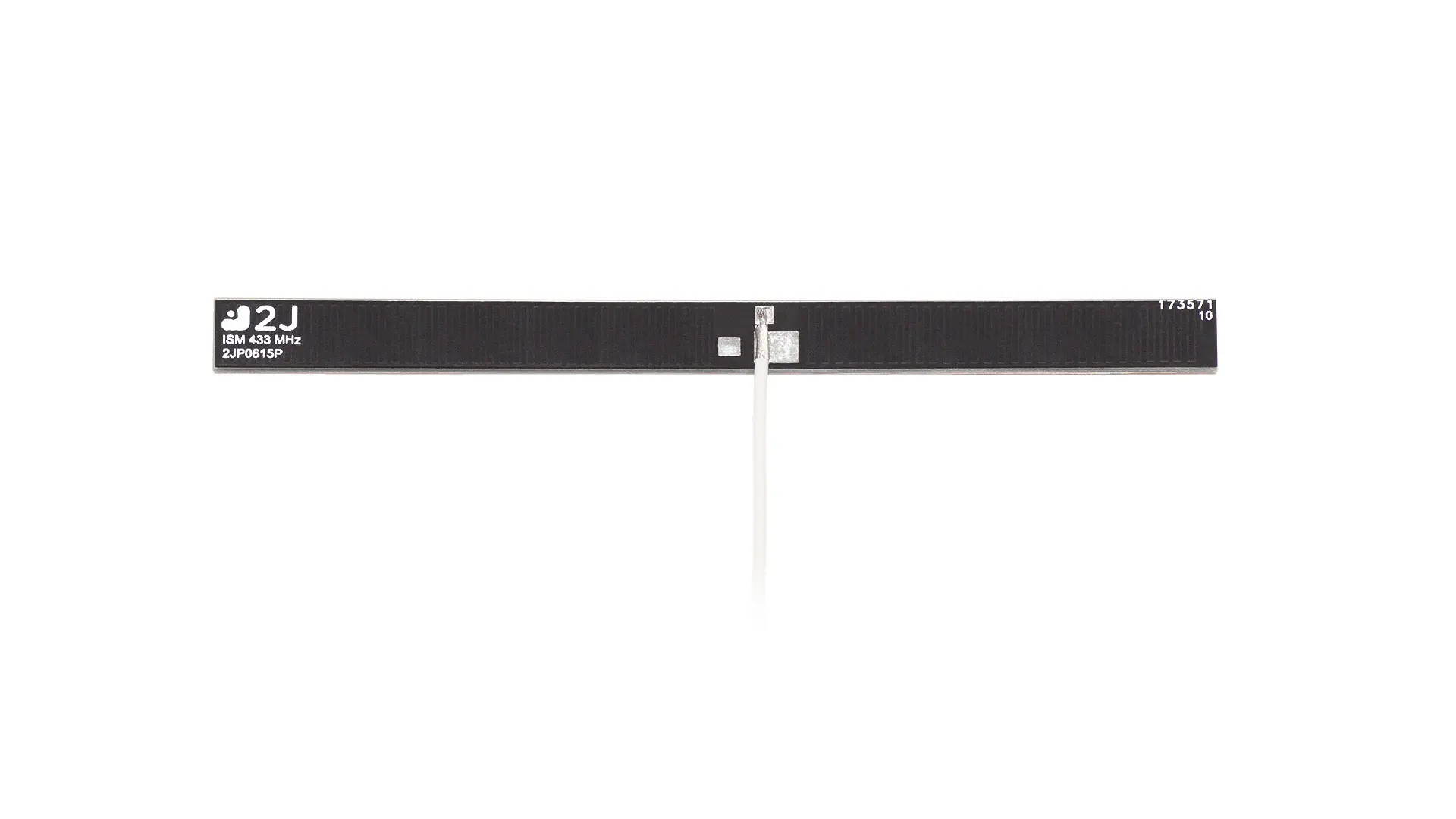

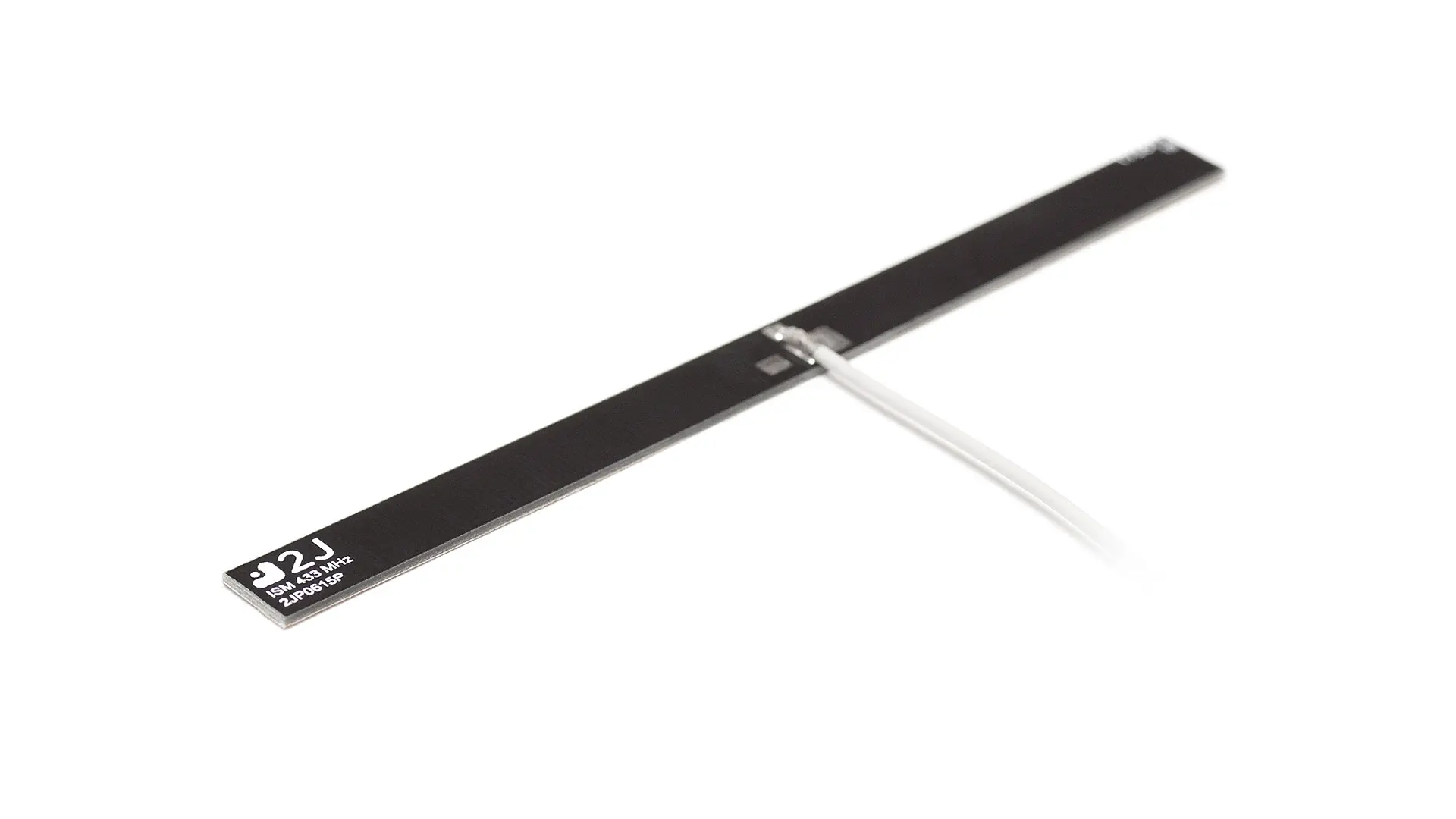

2JP0615P

2JP0615P

Download Data Sheet

Dimensions

Dimensions (mm) 104 x 8.5 x 0.8
Operating temperature -40 °C to +85 °C

Specification

Standards ISM, LoRa
Frequency 433-435
VSWR ~1.1:1
Efficiency (%) ~32.6
Peak Gain (dBi) ~-2.6
Impendance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
