Frequency

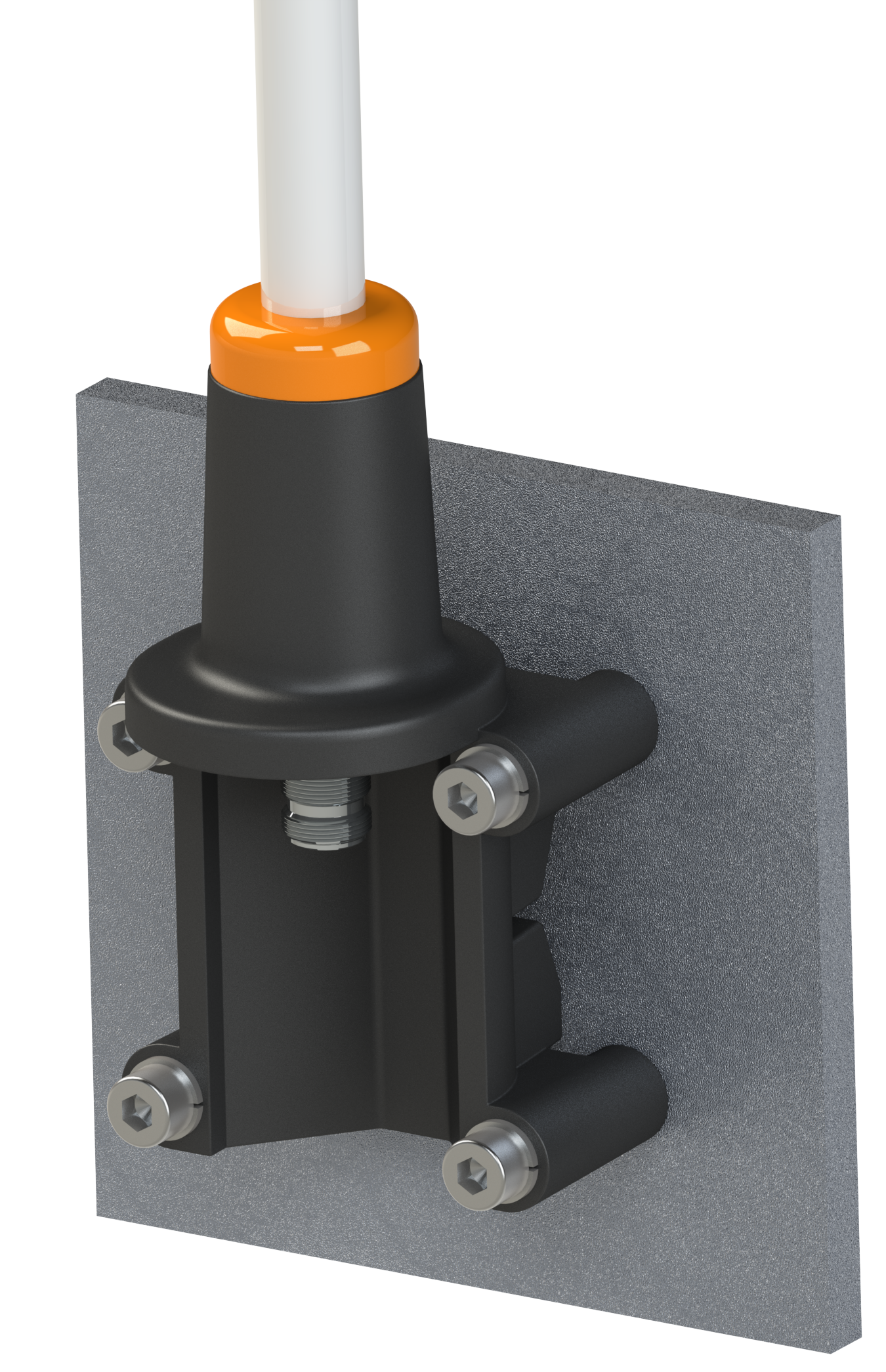

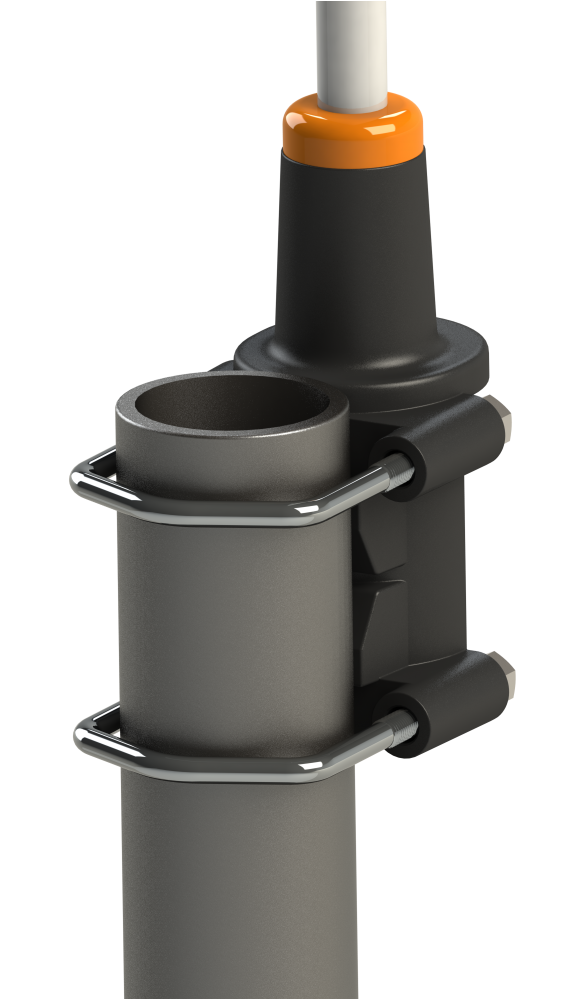

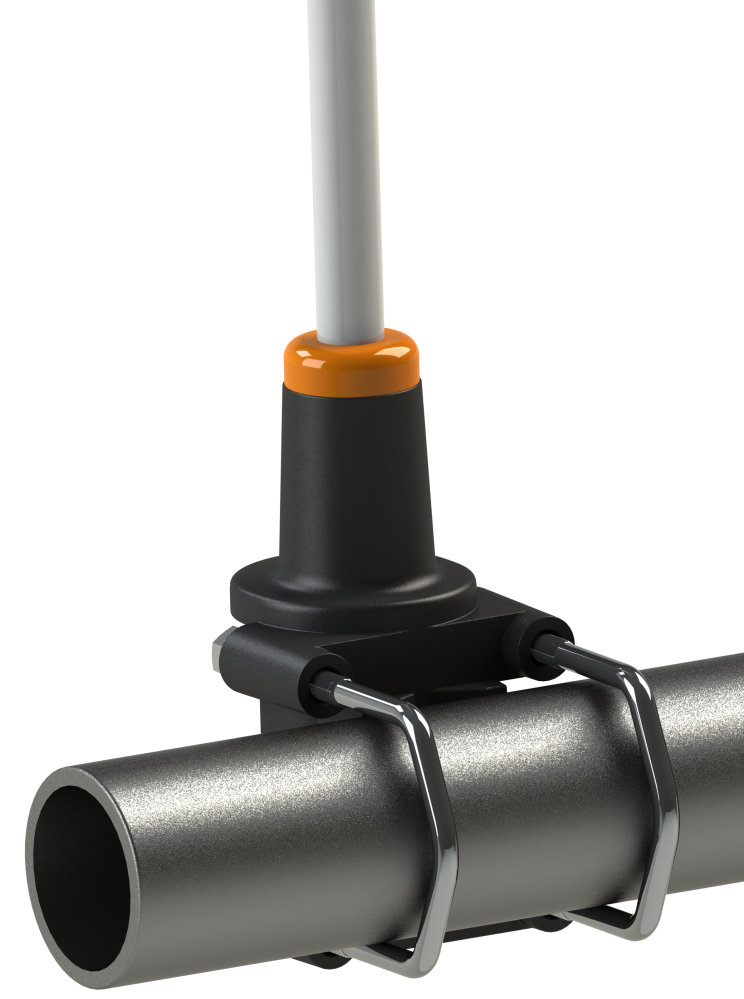

Mounting

Application

Unity Gain Omni Base Station Antenna for 450 MHz band

BASE004 A/B/C/D/E/F/G/X

Frequency

TETRA (380 - 500 MHz)

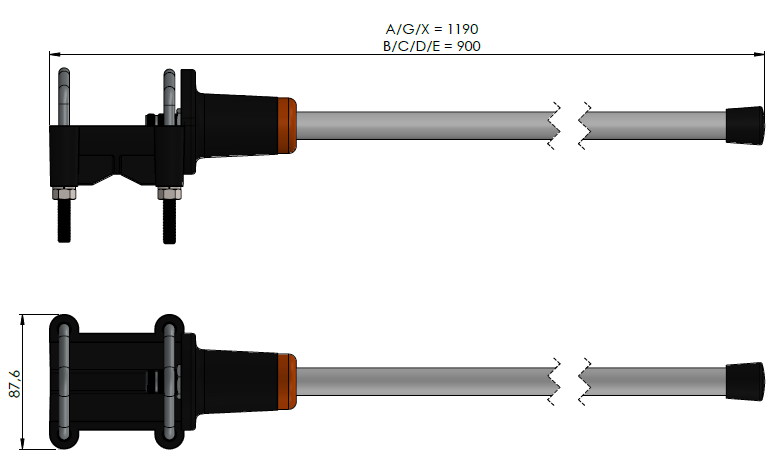

Dimensions

Height:
Width:
Weight: Max. 1.1 kg

Specification

Color:
Connector:
Cable: Max. 1.1 kg
Satellite:
Bandwidth: For X version: Approx. 5 % of the specified Centre Frequency (CF)
VSWR: < 1.5:1
Polarisation: Vertical
Gain: 0 dBd, 2.1 dBi
Noise Figure:
Supply Voltage:
Max Power: 300 W
