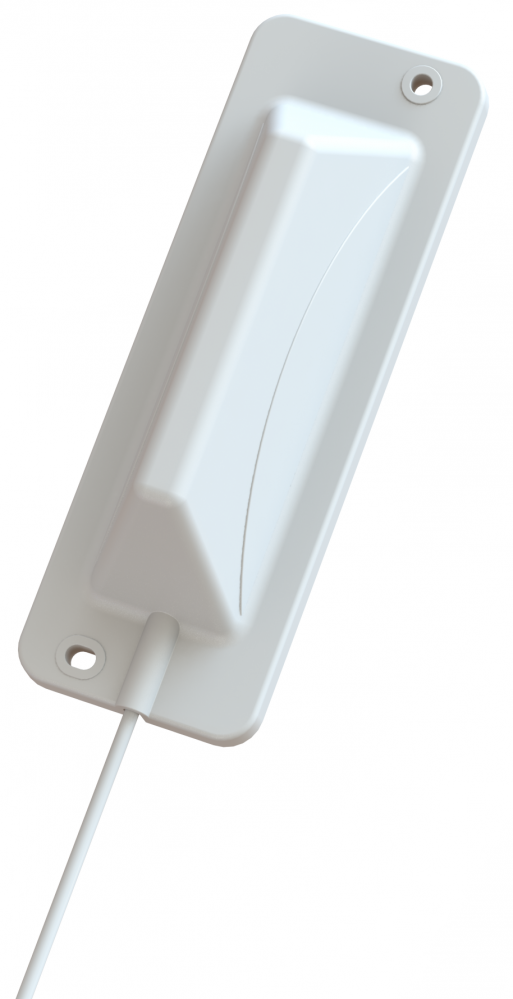

Wall Mounted Low Profile Multiband Antenna

IOT826

Frequency

3G (UMTS 2.1 GHz)

4G/LTE (699-960/1710-2690 MHz)

DECT

GSM (900 MHz)

Dimensions

Height: 35 mm
Width:
Weight: 160 g

Specification

Color: 35 mm
Connector:
Cable: 160 g
Satellite:
Bandwidth: See “FREQUENCY”
VSWR: < 2.5:1 (790-960 MHz / 1710-2170 MHz), < 1.5:1 (2500-2690 MHz)
Polarisation: Linear
Gain: 0 dBd, 2.1 dBi
Noise Figure:
Supply Voltage:
Max Power: 5 W
