Rugged low-profile multiband antenna with built-in active GNSS antenna

TELESAT-6

Frequency

3G (UMTS 2.1 GHz)

BeiDou (1561.098 MHz)

DECT

GALILEO E1 (1575.42 MHz)

GLONASS (1592 - 1610 MHz)

GNSS

GPS (1575.42 MHz)

GSM (900 MHz)

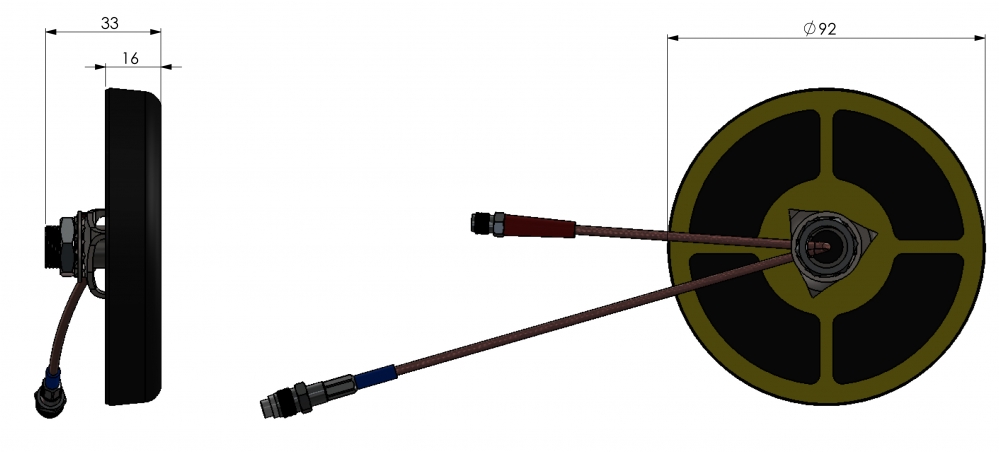

Dimensions

Height: 16 mm
Width:
Weight: 125 g

Specification

Color: 16 mm
Connector:
Cable: 125 g
Satellite: GLONASS, GPS, Galileo and BeiDou
Bandwidth:
VSWR:
Polarisation: Linear
Gain: 0 dBd
Noise Figure: 1.35 dB (GNSS)
Supply Voltage:
Max Power: 10 W (GSM/3G)
