3 dB UHF Fibreglass Antenna 1.14 m (Customer specified frequency)

UHF43X

Frequency

UHF

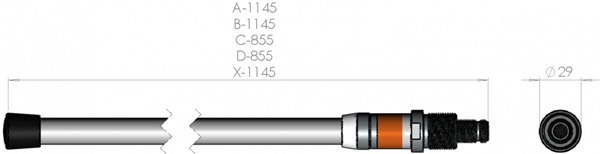

Dimensions

Height: 1145 mm
Width:
Weight: Max. 400 g (depending on frequency)

Specification

Color: 1145 mm
Connector:
Cable: Max. 400 g (depending on frequency)
Satellite:
Bandwidth: Approx. 5 % of the specified Centre Frequency (CF)
VSWR: < 1.5
Polarisation: Vertical
Gain: 0 dBd, 2.1 dBi
Noise Figure:
Supply Voltage:
Max Power: 250 W
